framework.h File Reference

#include "ofc/types.h"
#include "ofc/config.h"
#include "ofc/core.h"
#include "ofc/path.h"
#include "ofc/file.h"
#include "ofc/net.h"
#include "of_smb/smb.h"
#include "of_smb/persist.h"

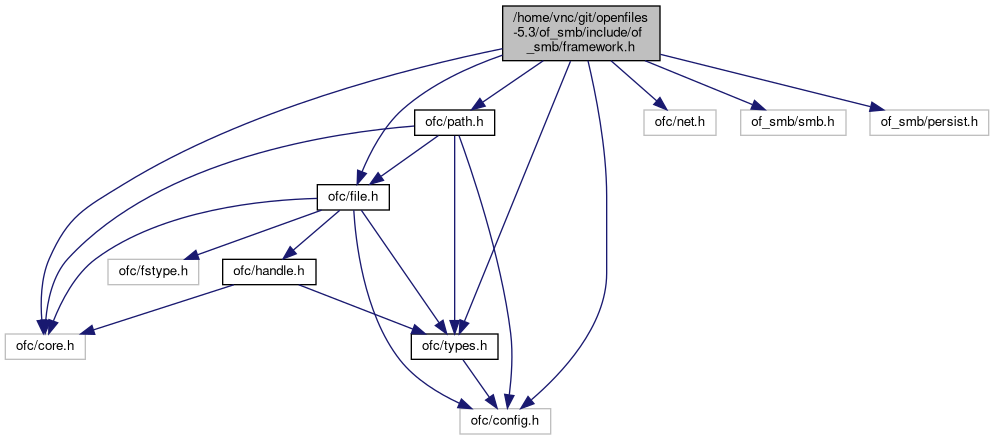

Include dependency graph for framework.h:

Go to the source code of this file.

Data Structures
struct	OF_SMB_EXPORT
struct	OF_SMB_EXPORTS
struct	OF_SMB_AUTH
struct	OF_SMB_AUTHS
struct	OF_SMB_REMOTE
struct	OF_SMB_REMOTES
#define	SERVER_EVENT_INFO   0
#define	SERVER_EVENT_ERROR   1
#define	SERVER_EVENT_SECURITY   2
OF_SMB_LIB OFC_VOID	of_smb_init (OFC_VOID)
OF_SMB_LIB OFC_VOID	of_smb_destroy (OFC_VOID)
OF_SMB_LIB OFC_VOID	of_smb_startup (OFC_HANDLE hScheduler)
OF_SMB_LIB OFC_VOID	of_smb_shutdown (OFC_VOID)
OF_SMB_LIB OF_SMB_REMOTES *	of_smb_get_remotes (OFC_VOID)
OF_SMB_LIB OFC_VOID	of_smb_free_remotes (OF_SMB_REMOTES *remotes)
OF_SMB_LIB OFC_VOID	of_smb_add_remote (OF_SMB_REMOTE *remote)
OF_SMB_LIB OFC_VOID	of_smb_remove_remote (OFC_LPCTSTR name)
OF_SMB_LIB OFC_UINT	of_smb_get_max_version (OFC_VOID)
OF_SMB_LIB OFC_VOID	of_smb_set_max_version (OFC_UINT maxVersion)
OF_SMB_LIB OFC_VOID	of_smb_enable_dialect (OFC_UINT dialect)
OF_SMB_LIB OFC_VOID	of_smb_disable_dialect (OFC_UINT dialect)
OF_SMB_LIB OFC_BOOL	of_smb_test_dialect (OFC_UINT dialect)
OF_SMB_LIB OFC_INT	of_smb_kinit (OFC_CHAR *principal, OFC_CHAR *password)
OF_SMB_LIB OFC_INT	of_smb_kdestroy (OFC_VOID)
OF_SMB_LIB OFC_CHAR *	of_smb_kactive (OFC_VOID)
OF_SMB_LIB OFC_CHAR *	of_smb_kactive_user (OFC_VOID)
OF_SMB_LIB OFC_VOID	of_smb_set_bootstrap_dcs (OFC_UINT count, OFC_CHAR **dc)
OF_SMB_LIB OFC_VOID	of_smb_get_bootstrap_dcs (OFC_UINT *count, OFC_CHAR ***dc)
OFC_VOID	of_smb_resolve_name (OFC_LPCSTR name, OFC_UINT16 *num_addrs, OFC_IPADDR *ip)

Macro Definition Documentation

SERVER_EVENT_ERROR

#define SERVER_EVENT_ERROR   1

Error Level for Server Event

SERVER_EVENT_INFO

#define SERVER_EVENT_INFO   0

INFO Level for Server Event

SERVER_EVENT_SECURITY

#define SERVER_EVENT_SECURITY   2

Critical Security Event for Server

Function Documentation

of_smb_add_remote()

OF_SMB_LIB OFC_VOID of_smb_add_remote

(

OF_SMB_REMOTE *

remote

)

Add a remote

This is to add a persistent remote. This is typically not used in normal client usage

Parameters

remote

remote to add

of_smb_destroy()

OF_SMB_LIB OFC_VOID of_smb_destroy

(

OFC_VOID

)

Destroy the Open Files SMB framework

This will release all memory. The state of the application should be as if SMB hass not been initialized. If the INIT_ON_LOAD build parameter is defined, this function will be called implicitly on application unload.

Examples

smbinit.c.

of_smb_disable_dialect()

OF_SMB_LIB OFC_VOID of_smb_disable_dialect

(

OFC_UINT

dialect

)

Disable an SMB Dialect

Parameters

dialect

The dialect to disable. One of: 0x0202 0x0210 0x0300 0x0302 0x0311

Examples

smbinit.c.

of_smb_enable_dialect()

OF_SMB_LIB OFC_VOID of_smb_enable_dialect

(

OFC_UINT

dialect

)

Enable an SMB Dialect

Parameters

dialect

The dialect to enable. One of: 0x0202 0x0210 0x0300 0x0302 0x0311

Examples

smbinit.c.

of_smb_free_remotes()

OF_SMB_LIB OFC_VOID of_smb_free_remotes

(

OF_SMB_REMOTES *

remotes

)

Free remotes returned from of_smb_get_remotes

Parameters

remotes

Array to free

of_smb_get_bootstrap_dcs()

OF_SMB_LIB OFC_VOID of_smb_get_bootstrap_dcs	(	OFC_UINT *	count,
		OFC_CHAR ***	dc
	)

Get DNS Bootstrap DCs

Parameters

count	Pointer to number of DCs returned
dc	Pointer to DC array

Note

DC array must be freed by with call to ofc_free.

of_smb_get_max_version()

OF_SMB_LIB OFC_UINT of_smb_get_max_version

(

OFC_VOID

)

Get the Maximum SMB Version supported by this SMB Stack

Returns

The max version. One of: 0x0202 0x0210 0x0300 0x0302 0x0311

of_smb_get_remotes()

OF_SMB_LIB OF_SMB_REMOTES* of_smb_get_remotes

(

OFC_VOID

)

Get all remotes configured

These are for persistent remotes. These are not used in a typical client usage. Rather they are if you wish to have known servers and reference them as a remote alias

Returns

Array of Remotes

of_smb_init()

OF_SMB_LIB OFC_VOID of_smb_init

(

OFC_VOID

)

Initialize the SMB Stack

This routine should be called before any other ConnectedSMB function but after the call to ofc_framework_init. It initializes the SMB portion of the stack. Thiss function is called implicitly if INIT_ON_LOAD is defined.

Examples

smbinit.c.

of_smb_kactive()

OF_SMB_LIB OFC_CHAR* of_smb_kactive

(

OFC_VOID

)

Return Active Domain of default cache

Returns

Domain

Note

Domain string must be freed by call to ofc_free

of_smb_kactive_user()

OF_SMB_LIB OFC_CHAR* of_smb_kactive_user

(

OFC_VOID

)

Return Active User of default cache

Returns

Active User

Note

User string must be freed by call to ofc_free

of_smb_kdestroy()

OF_SMB_LIB OFC_INT of_smb_kdestroy

(

OFC_VOID

)

Destroy (i.e. Logout) of Active Directory

This can be called from within OpenFiles, or you can interface with your domain external to Open Files

of_smb_kinit()

OF_SMB_LIB OFC_INT of_smb_kinit	(	OFC_CHAR *	principal,
		OFC_CHAR *	password
	)

Initialize an Active Directory Ticket

A ticket can be obtained external to Open Files or can be obtained from within the stack.

Parameters

principal	Principal for the ticket
password	Password for ticket

Returns

Status of request

of_smb_remove_remote()

OF_SMB_LIB OFC_VOID of_smb_remove_remote

(

OFC_LPCTSTR

name

)

Remove a remote from persistence

Parameters

name	Name of remote to remove

of_smb_resolve_name()

OFC_VOID of_smb_resolve_name	(	OFC_LPCSTR	name,
		OFC_UINT16 *	num_addrs,
		OFC_IPADDR *	ip
	)

Resolve a DNS Name

This will first try to resolve the name as provided. If that fails, it will append the domain name to the name and try again.

Parameters

name	name to resolve
num_addrs	Size of array to hold IP addresses
ip	pointer to Preallocated buffer of ip addresses

Note

If name does not resolve, num_addrs returned will be 0.

of_smb_set_bootstrap_dcs()

OF_SMB_LIB OFC_VOID of_smb_set_bootstrap_dcs	(	OFC_UINT	count,
		OFC_CHAR **	dc
	)

Set DFS Bootstrap DCs

By default, OpenFiles will attempt to query for the bootstrap DCs. Use this if DNS query is not possible.

Parameters

count	Number of DCs
dc	Array of DCs

Examples

smbcp.c.

of_smb_set_max_version()

OF_SMB_LIB OFC_VOID of_smb_set_max_version

(

OFC_UINT

maxVersion

)

Set the Maximum SMB Version supported by this SMB Stack

Parameters

maxVersion

The max version. One of: 0x0202 0x0210 0x0300 0x0302 0x0311

of_smb_shutdown()

OF_SMB_LIB OFC_VOID of_smb_shutdown

(

OFC_VOID

)

Shutdown the SMB Stack

This function will gracefully bring down the SMB components. This will terminate all existing SMB sessions and dismount all mounted shares. If INIT_ON_LOAD is defined, this function will be implicitly called.

Note

The SMB Server portion of the SMB stack does not currently support graceful shutdown. Simply exiting the application is the supported way of shutting down the server.

Examples

smbinit.c.

of_smb_startup()

OF_SMB_LIB OFC_VOID of_smb_startup

(

OFC_HANDLE

hScheduler

)

Start up the SMB Stack

This routine should be called after the stack has been initialized and after all configuration has been performed. It will start the SMB Components.

If INIT_ON_LOAD is defined, this function will be called implicitly on library load.

Examples

smbinit.c.

of_smb_test_dialect()

OF_SMB_LIB OFC_BOOL of_smb_test_dialect

(

OFC_UINT

dialect

)

Test an SMB Dialect

Parameters

dialect

The dialect to test. One of: 0x0202 0x0210 0x0300 0x0302 0x0311

Returns

OFC_TRUE if dialect is enabled, OFC_FALSE otherwise.
